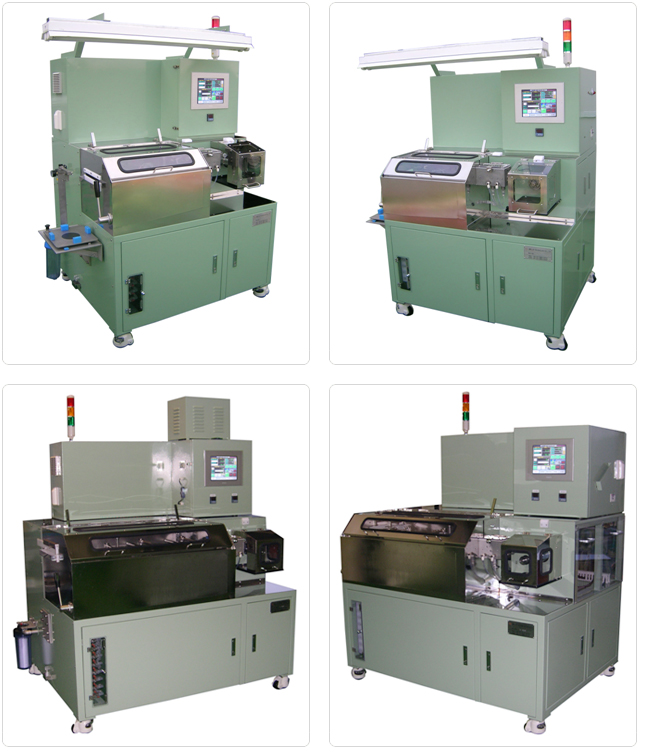

Item

Content

Remarks

Diameter Of Supplied Wire

Max.∅0.05 mm

Diameter Of Finished Wire

Min. ∅0.015 mm

Wire Speed

Max. 600m/min

Number Of Dies

11dies (10 +1)

Dies Size ∅ 25 * 7 mm

Mechanical Speed Reduction Rate

Variable

Wire Drawing Method

Horizontal - Type 2axis
Wet - Method Slip Type

Capstan

(Φ30~ Φ60) x 168L

Zirconia

Drive Motor

1~2shaft:~0.4kw AC Servo Motor x2
Spooler:0.2kw AC Servo Motor
For traverse: 0.2kw AC Servo Motor

Speed Changing Method

By Touch Screen Setting

Bobbin Size (mm)

Core Dia.Out Side Dia. Traverse
  ∅50 x  ∅60 x 40
  ∅70 x  ∅80 x 70
 ∅100 x ∅110 x 68

Bobbin Support Method

One Touch - types

Traverse Method

AC Servo motor forward /reverse rotation

Winding Thickness Control

Program Control and slip ratio constant control

Capstan Alinement

No.1 shaft with angle(3")
